Process: This RO+UV(double protection) model has 6 stage purification.
Primary Filtration: Inlet from T joint in your water tap, As first stage of filtration water enters into antiscalant which improves the life of membrane and goes to five micron Cartridge which removes physical particles in water. Second stage of filtration process in activated carbon filter which removes bad odour and colour then as third stage fine micron cartridge (One micron) which removes micro impurities.
Principle Filtration: As fourth stage of filtration water filtered by membrane with help of high-pressure pump (for osmotic pressure) which removes excess of minerals from water and same send through reject pipe line.
Post filtration: Final stage of filtration UV (Ultra violet rays) helps to ensure zero bacteria viruses in output water.
Optional: For Fully automatic which requires water storage tank(10 Ltrs).
Suitable for: Bore water, metro water, municipal water, lorry water and well water.

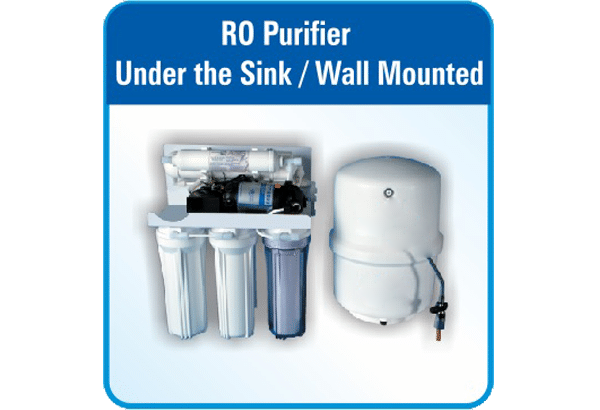

Placeholder: Under the sink and wall mounted.
#
Types
Specification
1
Flow Rate
10-12 Litres/Hour
2
Tank Capacity
10 Litres
3
Power Consumption
48 Watts
4
Dimension
457 X 152 X 457 in mm (H x L x B) Tank: Dia- 228, H- 304
